Products

Long Camera Mount

Need a long camera mount?

This is the extra long version of the standard camera mount stud. These are CNC'ed out of solid T6061 aluminum rods, then anodized to resist corrosion. Get it as a spare or to add another Benthic or Scout housing to your VideoFin Pro. These can also be used independently to mount on a hard surface. Compatible only with the Benthic or Scout housing mount. Well Made in Florida, USA.

Length is 3.75" (9.6cm), width is 0.75" (1.9cm)
Stainless steel bolts (4)
Stainless steel nuts (4)
Stainless steel washers (6)

View full product details

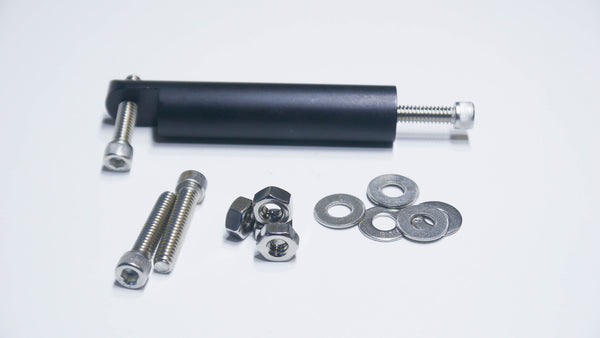

Long GPH Clamp Mount

Need a longer mount for your GPH?

This is the extra long version of the standard GPH mount stud. These are CNC out of a solid T6061 aluminum rods, then anodized to resist corrosion. Get it as a spare or to add another GPH housing to your VideoFin Pro. These can also be used independently to mount on a hard surface. Compatible only with the GPH clamp only. Well Made in Florida, USA.

Length is 3.75" (9.6cm), width is 0.75" (1.9cm)
Stainless steel bolts (4)
Stainless steel nuts (4)
Stainless steel washers (6)

View full product details

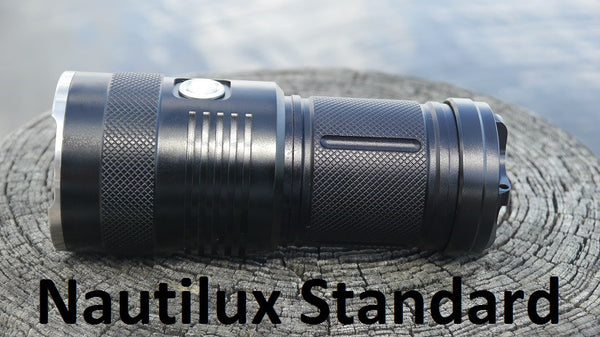

Nautilux - 2000 Lumens Video Light

$ 229.00

Film deeper.

Beyond 250ft (75m) deep, some sort of light source is recommended to shoot videos. The Nautilux combined with the GPH 1750m general housing is the best self-contained solution for underwater video filming. The Nautilux must be used with a GPH-1750m housing.

Nautilux has 5 different settings: High (2000 lumens), Medium (1400 Lumens), Low (600 Lumens), strobe and SOS. On the high setting, the batteries will last about 1 hour. The color is neutral white at 4000K using 3 Cree XML LEDS.

We offer two versions: The Standard version throws a 50 degree beam that is more spotlight than a flood light. When the Nautilux is placed into the GPH-1750m, the light beam will be changed into three intersecting ellipses, keeping the center beam focus and strong. This beam is ideal is you want to record a very specific area that requires a very strong and narrower beam. The Standard Nautilux can also be used as a regular flashlight on land.

The Modified Nautilux is a Standard Nautilux that has been machine cut to remove about 1" (2.5cm) from the bezel area and the reflector. This gives the Nautilux an extremely wide light pattern (over 120 degrees) when you need to film the widest area, be for general observation or exploration. This is the preferred version. Since there is no protective bezel or lens on the Modified Nautilux, this light should remain into the GPH-1750m at all time, even when used on land.

All Nautilux come with 4 Li Ion batteries and a charger (US plug only)

Nautilux Standard outside the GPH-1750M housing is only water resistant (IP67 rating), while the Nautilux Modified is should never be exposed to water outside the GPH 1750m Housing

View full product details

Passive Video Basic Underwater Housing Kit #1 for SJcam, GitUp or GoPro®

Need to go beyond the Benthic housing? This basic kit includes a Benthic housing (choose Benthic 2 or 3) , an adapter ring, and a 7.25" GPH 1750m housing.

Now, you will have ample room to add various batteries, programmable timer, voltage regulator, microcontroller boards, etc.

The Benthic housing itself provides up to .83" (21mm) of space behind the GitUp, SJCam or GoPro® camera. Since the back of this housing is drilled with 7/16th hole (11mm), you can easily pass through wires from the camera to whatever you have stored in the GPH. The Benthic provides easy access to the USB and HDMI ports. The GPH itself is 7.25" long (19.5cm), giving you 6.4"x2.5" (16.3cm x 6.3cm ) of space. Outside diameter is 3" (7.6mm).

This a highly flexible and modular system. An additional GPH, be 7" (15.2cm) or 10" (25.4cm) long, can be added to this basic kit. We provide drilling and tapping service should you want to connect this kit to another one, or to surface power using a sub-sea connector.

The Benthic and the GPH can be used independently with an optional plug for the Benthic and an additional endcap for the GPH.

Both of these housings are field-proven globally. The longest single deployment record so far is at a depth of 4900 feet (1500m) for 16 months. This kit is rated for a depth of 6500ft (2000m).

As with all our housings, these are made of 6061 aluminum and anodized. Well Made in the USA.

NB: wires, boards, batteries, connectors, cameras shown in pictures are not part of the kit.

Legal Disclaimer: Group B Distribution Inc is not associated, authorized, endorsed by, or in any way officially connected Sony, JVC, SJCAM, Contour or other action camera manufacturers. We proudly design and manufacture our own gear independently. This product and/or service is not affiliated with, endorsed by, or in any way associated with GoPro ® Inc. or its products and services. GoPro, HERO, Karma, Session and their respective logos are trademarks or registered trademarks of GoPro, Inc.

View full product details

Passive Video Basic Underwater Housing Kit #2 for GitUp, SJCam or GoPro®

Need to go beyond the Benthic housing? This basic kit includes a Benthic housing (choose Benthic 2 or Benthic3 ), an adapter ring, and a 10" GPH2 1750m housing.

Now, you will have ample room to add various batteries, programmable timer, voltage regulator, microcontroller boards, etc. To give you an idea, you can easily fit 18 x 18650 batteries and still have room.

The Benthic housing itself provides up to .83" (21mm) of space behind the action camera. Since the back of this housing is drilled with 7/16th hole (11mm), you can easily pass through wires from the camera to whatever you have stored in the GPH2. The Benthic provides easy access to the USB and HDMI ports.The GPH2 itself is 10" (25.4cm) long, giving you 9.5" (24.1cm) of space with a 2.5" (53mm) internal diameter. Outside diameter is 3" (7.6mm).

This a highly flexible and modular system. An additional GPH, be 6" (15.2cm) or 10" (25.4cm) long, can be added to this basic kit. We provide drilling and tapping service should you want to connect this kit to another one, or to surface power using a sub-sea connector.

The Benthic and the GPH2 can be used independently with an optional plug for the Benthic and an additional endcap for the GPH2.

Both of these housings are field-proven globally. The longest single deployment record so far is at a depth of 4900 feet (1500m) for 16 months. This kit is rated for a depth of 6500ft (2000m).

As with all our housings, these are made of 6061 aluminum and anodized. Well Made in the USA.

NB: wires,boards, batteries shown in pictures are not part of the kit.

Legal Disclaimer: Group B Distribution Inc is not associated, authorized, endorsed by, or in any way officially connected Sony, JVC, SJCAM, Contour or other action camera manufacturers. We proudly design and manufacture our own gear independently. This product and/or service is not affiliated with, endorsed by, or in any way associated with GoPro ® Inc. or its products and services. GoPro, HERO, Karma, Session and their respective logos are trademarks or registered trademarks of GoPro, Inc.

View full product details

Programmable Timer For Camera/Lights for Time Lapse

This highly programmable timer allows up to 18 functions for timed events on your camera or flashlight. This includes repeating an event (ie: record a video and/or turn flashlight on for 10 minutes then turn off for 20 minutes) up to 9999 times if counting, otherwise unlimited. Timed events are adjustable from 0.01 seconds up to 270 hours, giving you maximum flexibility.

Two of these timers can be linked and programed to allow for even more flexibility ((ie: wait 40 hours 20 minutes and 5 seconds, then start the cycle (ie: turn camera or light on for 12 minutes, then turn off, wait 30 minutes) and repeat that cycle 100 times. Or turn camera on first, after 10 seconds, turn flashlight on, then turn both camera and flashlight off after 15 minutes. Repeat this cycle after 45 minutes and do it 30 times.)

This timer operates on 12V or 24V. It also fits nicely in a GPH housing.

This timer works exceptionally well with our Git2 camera and is also used in our custom programmable lights.

Mode 10 thru18 is when a secondary timer is linked or an external electrical pulse is sent (such as from a switch)

Mode 1

- Power on starts T1 and camera/light will be off

- When T1 = 0 the camera/light will turn on

- Function stops

- T1 can be adjustable between 0.01 seconds and 270 hours

- High pulse on CH1 will repeat the function

Mode 2 - Timing Disconnect

- Power on turns on the camera/light and starts T1

- When T1 = 0 the camera/light will turn off

- Function stopscamera/light

- T1 can be adjustable between 0.01 seconds and 270 hours

- High pulse on CH1 will repeat the function

Mode 3- Timing Pull-in Then Disconnect

- Power on starts T1 and camera/light will be off

- When T1 = 0 the camera/light will turn on

- T2 Starts

- When T2 = 0 the camera/light will turn off

- Function stops

- T1 & T2 can be adjustable between 0.01 seconds and 270 hours

- High pulse on CH1 will repeat the function

Mode 4 - Timing Disconnect Then Pull-in

- Power on turns on the camera/light and starts T1

- When T1 = 0 the camera/light will turn off

- T2 Starts

- When T2 = 0 the camera/light will turn on

- Function stops

- T1 & T2 can be adjustable between 0.01 seconds and 270 hours

- High pulse on CH1 will repeat the function

Mode 5 - Unlimited Cycle Timing Mode A

- Power on starts T1 and camera/light will be off

- When T1 = 0 the camera/light will turn on

- T2 Starts

- When T2 = 0 the camera/light will turn off

- Repeat the function

- T1 & T2 can be adjustable between 0.01 seconds and 270 hours

- High pulse on CH1 will reset and restart the function

Mode 6 - Unlimited Cycle Timing Mode B

- Power on turns on the camera/light and starts T1

- When T1 = 0 the camera/light will be off

- T2 Starts

- When T2 = 0 the camera/light will turn on

- Repeat the function

- T1 & T2 can be adjustable between 0.01 seconds and 270 hours

- High pulse on CH1 will reset and restart the function

Mode 7 - Limited Cycle Timing Mode A

- Power on starts T1 and camera/light will be off

- When T1 = 0 the camera/light will turn on

- T2 Starts

- When T2 = 0 the camera/light will turn off

- Repeat the function NX times

- T1 & T2 can be adjustable between 0.01 seconds and 270 hours

- NX can be between 1 and 9999 cycles

- High pulse on CH1 will reset and restart the function

Mode 8 - Limited Cycle Timing Mode B

- Power on turns on the camera/light and starts T1

- When T1 = 0 the camera/light will be off

- T2 Starts

- When T2 = 0 the camera/light will turn on

- Repeat the function NX times

- T1 & T2 can be adjustable between 0.01 seconds and 270 hours

- NX can be between 1 and 9999 cycles

- High pulse on CH1 will reset and restart the function

Mode 9 - Self-locking Mode

- At power on camera/light will be off

- High pulse on CH1 will turn on the camera/light

- High pulse on CH1 will turn off the camera/light

Mode 10 - Trigger Mode with delay off function

- At power on camera/light will be off

- High pulse on CH1 will turn on the camera/light

- T1 will start AFTER CH1 is at a Low level

- When T1 = 0 the camera/light will turn off

- High pulse on CH1 will restart function

- Note: If T1 is set to 0000, High on CH1 will turn on the camera/light . A Low on CH1 will turn off the camera/light

- T1 can be adjustable between 0.01 seconds and 270 hours

Mode 11 - Trigger timing mode A

- At power on camera/light will be off

- High pulse on CH1 will start T1

- When T1 = 0 the camera/light will turn on

- High pulse on CH1 will restart function

- T1 can be adjustable between 0.01 seconds and 270 hours

Mode - Trigger timing mode B

- At power on camera/light will be off

- High pulse on CH1 will turn on the camera/light

- T1 will start

- When T1 = 0 the camera/light will turn off

- High pulse on CH1 will reset and restart the function

- T1 can be adjustable between 0.01 seconds and 270 hours

Mode 13 - Trigger timing mode C

- Power on starts T1 and camera/light will be off

- High pulse on CH1 will start T1

- When T1 = 0 the camera/light will turn on

- T2 Starts

- When T2 = 0 the camera/light will turn off

- High pulse on CH1 will reset and restart the function

- T1 & T2 can be adjustable between 0.01 seconds and 270 hours

Mode 14 - Trigger timing mode D

- At power on camera/light will be off

- High pulse on CH1 will turn on the camera/light

- T1 will start

- When T1 = 0 the camera/light will turn off

- T2 Starts

- When T2 = 0 the camera/light will turn on

- High pulse on CH1 will reset and restart the function

- T1 & T2 can be adjustable between 0.01seconds and 270 hours

Mode 15 - Unlimited Cycle Timing Mode A

- Power on camera/light will be off

- High pulse on CH1 will start T1

- When T1 = 0 the camera/light will turn on

- T2 Starts

- When T2 = 0 the camera/light will turn off

- High pulse on CH1 will reset and restart the function

- Repeat the function

- T1 can be adjustable between 0.01 seconds and 270 hours

Mode 16 - Unlimited Cycle Timing Mode B

- At power on camera/light will be off

- High pulse on CH1 will turn on the camera/light

- T1 will start

- When T1 = 0 the camera/light will turn off

- T2 Starts

- When T2 = 0 the camera/light will turn on

- High pulse on CH1 will reset and restart the function

- Repeat the function

- T1 can be adjustable between 0.01 seconds and 270 hours

Mode 17 - Limited Cycle Timing Mode A

- At power on camera/light will be off

- High pulse on CH1 will start T1

- When T1 = 0 the camera/light will turn on

- T2 Starts

- When T2 = 0 the camera/light will turn off

- Repeat the function NX times

- T1 & T2 can be adjustable between 0.01 seconds and 270 hours

- NX can be between 1 and 9999 cycles

- High pulse on CH1 will reset and restart the function

Mode 18 - Limited Cycle Timing Mode B

- At power on camera/light will be off

- High pulse on CH1 will turn on the camera/light

- T1 will start

- When T1 = 0 the camera/light will turn off

- T2 Starts

- When T2 = 0 the camera/light will turn on

- Repeat the function NX times

- T1 & T2 can be adjustable between 0.01 seconds and 270 hours

- NX can be between 1 and 9999 cycles

- High pulse on CH1 will reset and restart the function

View full product details

Programmable Underwater Video Light - Nautilux Custom

Nautilux Custom is a fully programmable flashlight for extreme depth. Rated for 1750m ( 5700ft, 856 fathoms deep), this light provides up to 3500 lumens of neutral white light using two high output Cree LEDS. After 6 hours, it still provides enough light to shoot videos (up to 1500 lumens).

This light includes a 18 Mode programmable timer which allows you program a very wide range of timing options (see Programmable Timer for full list of modes). Delaying when the light comes on, or turning on/off after a certain time frame is very easy to achieve.

The Nautilux Custom also features a LED driver which allows one LED light cob to be disconnected to use only 1 LED if you so choose. The custom 12V battery pack comes with its own charger. (Please read the battery disclaimer on this site prior to using). The Nautilux Custom is made with a GPH 2 and a GPH Extension. The GPH 2 contains the battery while the GPH Extension contains the LED driver and the Programmable Timer. Both the GPH Extension and the Programmable Timer can be removed to turn the Nautilux Custom into a regular flashlight.

The Nautilux Custom be drilled in the back endcap to add a SubConn underwater connector. This allows for precise timing between the Nautilux Custom and the camera housing. For example, if you were filming a baited trap, you want to turn your camera on first, then after a few seconds, turn this light on. This would ensure that you have footage of whatever is close to the baited trap before it swims away.

The Nautilux Custom is 16" long (41cm) and 3" wide (7.6cm). It weighs 5.7 lbs (2.6kg). Custom made right here in Florida.

We can use different LED (IR,UV,etc), just contact us.

PLEASE NOTE: DUE TO THE HAZMAT REGULATIONS, THE BATTERY PACK AND CHARGER WILL SHIP DIRECTLY FROM HONG KONG.

View full product details

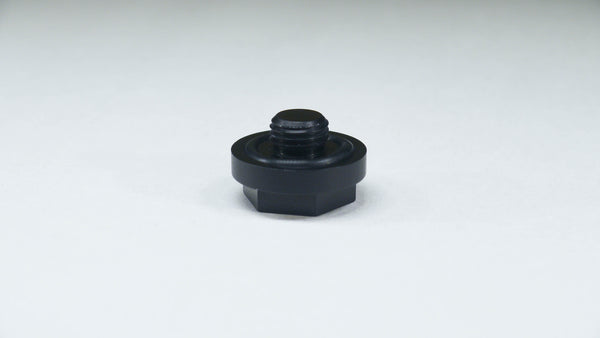

Spacer Plug

If your housing has been drilled to accept an undersea connector, there may be times when you want to use your housing just by itself. Our spacer plug allows you to remove the connector and spacer from your housing and insert this plug to make the housing completely waterproof. Custom machined out of T6061, this plug has also been anodized. Well made in Florida, USA. View full product details

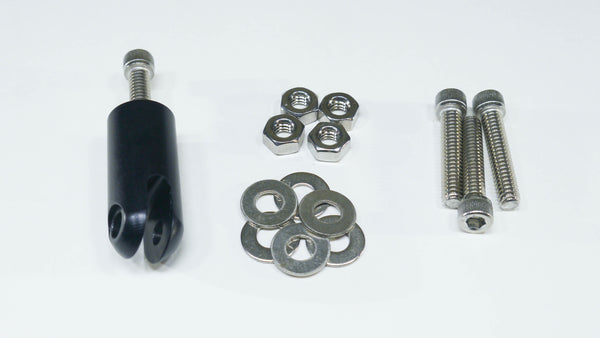

Standard Camera Mount

This is the standard camera mount stud that is supplied with the VideoFin Pro system. These are CNC'ed out of a solid T6061 aluminum rods, then anodized to resist corrosion. Get it as a spare or to add another Benthic or Scout housing to your VideoFin Pro. These can also be used independently to mount on a hard surface. Compatible only with the Benthic or Scout housing mount. Well Made in Florida, USA.

Length is 1.75" (4.45cm), width is 0.75" (1.9cm)
Stainless steel bolts (4)
Stainless steel nuts (4)
Stainless steel washers (6)

View full product details

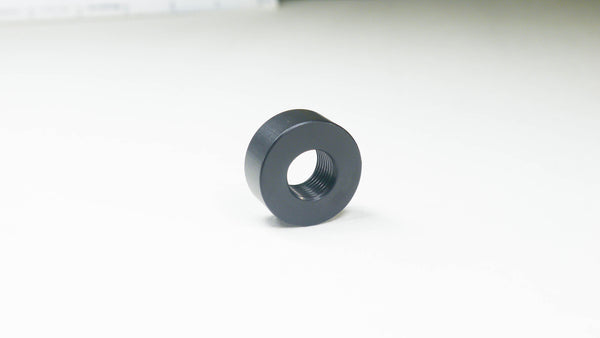

Underwater Connector Spacer

Are you connecting one of our housings to another one or to your ROV?

This spacer fits outside the housing, minimizing the intrusion of the undersea connector into the housing itself. This spacer can be used on any of our housings, including the end cap of a GPH. We offer two of the most common sizes, 7/16th with a 20 thread or 1/2" also with a 20 thread. Our price includes the cost of drilling the housing. This spacer is made of T6061 and anodized. Well Made in Florida, USA.

We can manufacture other sizes if necessary. Lead time is 3-5 weeks.

View full product details
